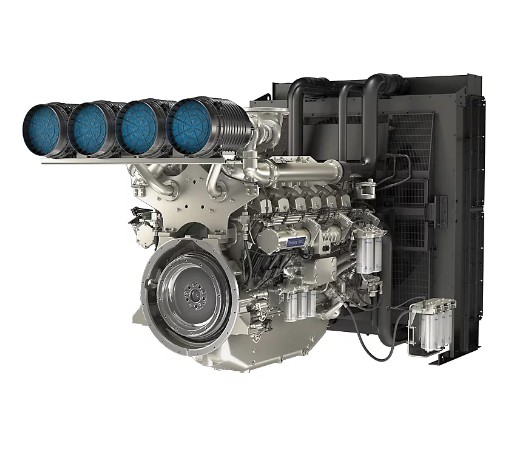

The Perkins® 5012A-E46TAG has been designed to offer reliable power for all electric power applications, including standby, prime, critical and data centres.
Engineered and built specifically for the power generation market, the Perkins® 5000 Series is a power-packed engine range built to be dependable, versatile and offer low daily operating costs.
Key Specs
- Gross Mechanical Output: 921-1638 kW
- Typical Electrical Output: 1020-1875 kVA (816-1500 kWe)
- Emissions: Fuel Optimised
Maximised productivity
The engine build and performance have been designed from the ground up with ultimate productivity and dependability in mind, so customers can be confident that power will be available when required.
They have been tested around the world, in the harshest environments, to deliver performance, no matter the conditions.
Ease of integration and service accessibility
A single point customer electronics connection supports ease of integration and service accessibility is provided from a single side with 500 hours or two year oil and fuel service interval whichever comes first.
Advanced technology
ElectropaK Dimensions
| Length | 3913 mm |
| Width | 2200 mm |
| Height | 2614 mm |
| Dry Weight | 5860 kg |
General
| Number of Cylinders | 12 Vee |
| Bore | 160 mm |
| Stroke | 190 mm |
| Displacement | 45.84 l |
| Compression Ratio | 13.8:1 |
| Aspiration | Turbocharged and air-to-air chargecooled |
| Combustion System | Direct injection |
| Rotation from Flywheel End | Anti-clockwise |
| Cooling System | Watercooled |
| Aftertreatment | N/A |
| Typical Alternator Efficiency | 95% |
| Switchable | No |
